4 · Flow

Everything that happens over time in RFX is a script, or a child of one. The whole control model is one dropdown on each child.

Live Tap TRIGGER for one round. Hold it past 400 ms for a burst of three. Click the preview first for sound.

The dropdown

Every step you add has a flow box on its row. It answers two questions that have nothing to do with each other — does my next sibling wait for me, and does my parent wait for me — and it packs both into one word:

flow	Gates the next sibling?	Parent waits for it?	Use it for
serial (default)	✅	✅	a step — one thing after another
parallel	❌	✅	a layer — run together, all awaited
detached	❌	❌	fire and forget — a background sound or loop

That is the entire vocabulary. There is no container “mode”: a container is always serial-by-default, and its children decide.

Ticking `loop` overrides the dropdown

loop forces detached, because a parent cannot wait for something that never ends. So “a looping look” is not a special kind of container — it is a container whose children all loop, which means they all detach and run together.

1 · A look is layers

Open the idle script from part 2 and add a second child: ＋ effect ▸ spark, targeting @barrel, colour #ffc08a, sec 0.6, loop ticked.

Both children now loop, so neither gates the other: the blink and the random sparks run at once on the same eight pixels, the spark painting over the blink. Add a third and you have three layers. You configured no scheduler.

2 · A sequence is steps

Make a new script called shot. Add four children — this is the card the whole part is about:

Four children, four flow dropdowns. Read the flow column downward and you have read the timing.

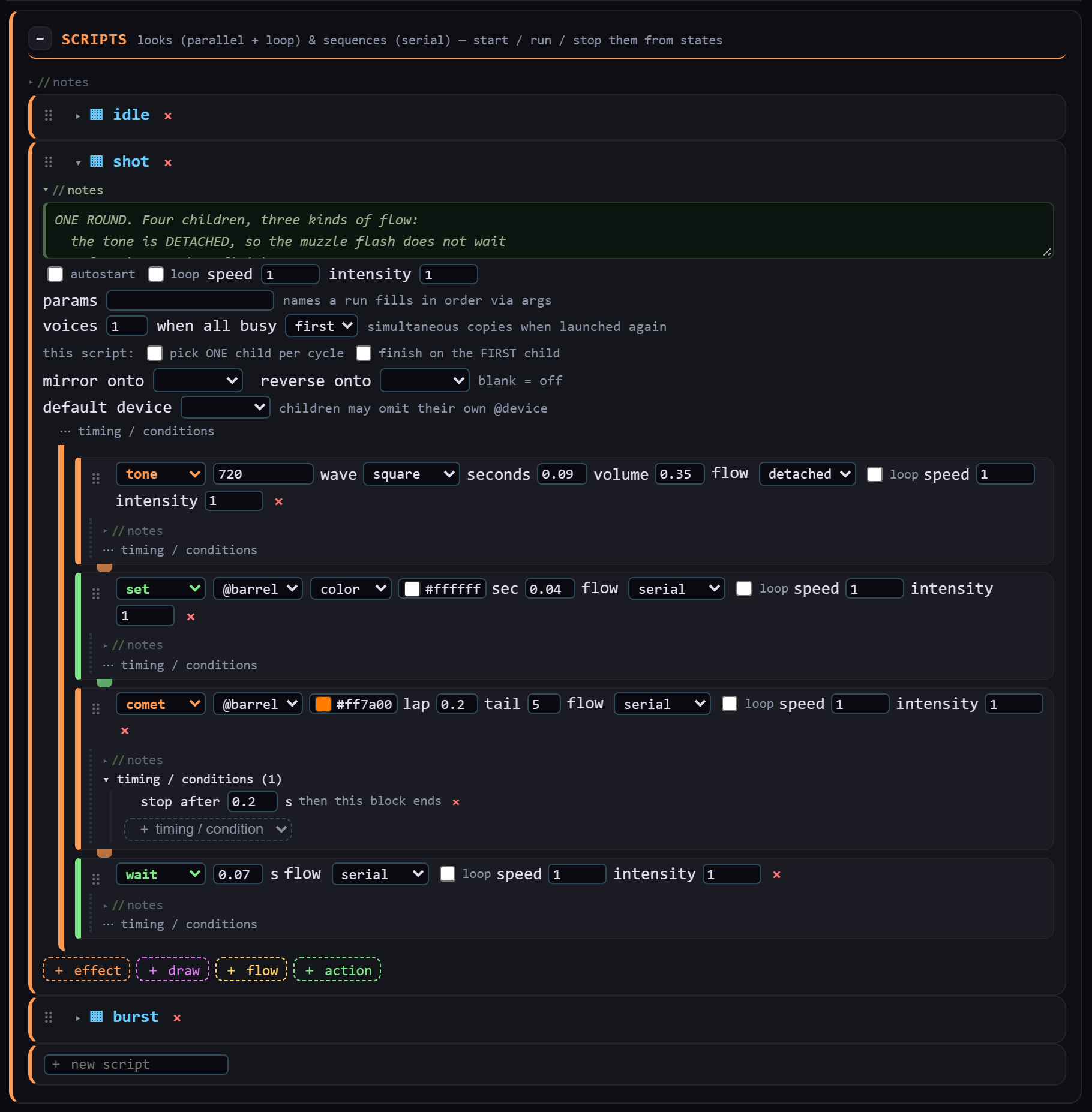

#	Add with	Verb	Set	flow
1	＋ effect	tone	720, wave square, seconds 0.09, volume 0.35	detached
2	＋ action	set	@barrel, color #ffffff, sec 0.04	serial
3	＋ effect	comet	@barrel, #ff7a00, lap 0.2, tail 5	serial
4	＋ action	wait	0.07	serial

Then on the comet, open ＋ timing / condition and add stop after — 0.2 s.

Read the card downward:

1. The tone is detached, so the muzzle flash on the next row starts immediately instead of waiting 90 ms for a sound to finish. This is the most common use of detached there is.
2. The flash and the comet are serial steps — the comet does not start until the white flash has held for its 0.04 s.
3. “stop after” gives the comet a lifetime. A comet with no lifetime and no loop would run one lap and stop; with one, it is a step with a definite end, which is what lets the next child know when to start. (In the file this is the uniform for modifier.)
4. The wait is recovery time — it gates nothing but the end of the script, which is exactly what stops you machine-gunning the trigger.

When the last serial child finishes, the script is done and shot.done fires.

The timing / conditions picker is where the uniform modifiers live

Four of them work on any step, whatever its verb: stop after (for), delay start (after), repeat every (every) and run only while (while). They are in a fold rather than on the row because most steps use none of them — and each one appears as a sentence with its own hint, so you do not have to remember which key does what.

3 · A burst is a nested container

Make another script, burst. Drag a group block from the palette’s Flow section into its list — a group is a step that contains steps.

Put a copy of the four children inside it, then tick the group’s loop box and type 3 in the count field beside it.

A finite loop is still awaited

Leaving the loop count blank means ∞, and the editor says so: × (blank = ∞). An infinite loop detaches. 3 does not — the parent waits for all three cycles, and burst.done fires when the third one ends. That is what lets the state machine come home after a burst without knowing how long a burst is.

4 · Tap or hold, from one button

On the Ready state, change the when event dropdown from trigger.pressed to trigger.tapped → Firing, then add a second handler: ＋ when event ▸ trigger.held → Bursting.

Add the Bursting state with run ▸ burst on enter, and burst.done → Ready.

Both events come from the same physical trigger, and the states pick which one they want. Nothing timed the press; the input did that.

The rule that makes this worth it

Time, speed and intensity flow downhill. Put 0.5 in the shot script’s speed box and every child in it — including the tone’s pitch — halves with it. Drag the Live tab’s master speed slider and the whole show slows, audio and all.

That one property is why the engine has scripts instead of a list of timers, and it is the best debugging tool in the Studio: a 40 ms muzzle flash you cannot see at 1.0 is perfectly legible at 0.2.

What the editor wrote

step-04-flow.json 81 lines Copy

{
  // ===========================================================
  //  BLASTER · STEP 4 — Flow
  //  Every child answers two questions: does the next sibling
  //  wait for me, and does my parent wait for me? `flow` is the
  //  one word that answers both.
  //
  //    serial   (default)  next waits · parent waits   -> a STEP
  //    parallel            next runs  · parent waits   -> a LAYER
  //    detached            next runs  · parent doesn't -> FORGET IT
  // ===========================================================
  "schemaVersion": 1,
  "name": "Blaster 04 - Flow",
  "board": "t-display-s3",

  "devices": {
    "barrel": { "kind": "ledstrip", "count": 8, "pin": 16, "order": "GRB", "brightness": 160 }
  },

  "inputs": {
    "trigger": { "label": "TRIGGER", "color": "#ff3b30", "pin": 14, "activeLow": true, "pull": "up" }
  },

  "scripts": {
    // TWO LAYERS. Both children loop, so both run at once and
    // neither gates the other — a looping child is detached
    // automatically, because nothing can wait for forever.
    "idle": {
      "children": [
        { "blink": "@barrel", "color": "#ff6a00", "off": "#140400", "sec": 1.4, "loop": true },
        { "spark": "@barrel", "color": "#ffc08a", "sec": 0.6, "loop": true }
      ]
    },

    // ONE ROUND. Four children, three kinds of flow:
    //   the tone is DETACHED, so the muzzle flash does not wait
    //     for the sound to finish;
    //   the flash and the ejecting comet are SERIAL steps;
    //   `for` gives the comet a lifetime, so it is a step with
    //     an end rather than a look that never stops.
    "shot": {
      "children": [
        { "tone": 720, "wave": "square", "seconds": 0.09, "volume": 0.35, "flow": "detached" },
        { "set": "@barrel", "color": "#ffffff", "sec": 0.04 },
        { "comet": "@barrel", "color": "#ff7a00", "lapSec": 0.2, "tail": 5, "for": 0.2 },
        { "wait": 0.07 }
      ]
    },

    // THREE ROUNDS. A nested container with `loop: 3` runs the
    // shot three times; the parent waits for the whole burst,
    // then `burst.done` fires.
    "burst": {
      "children": [
        { "children": [
            { "tone": 720, "wave": "square", "seconds": 0.09, "volume": 0.35, "flow": "detached" },
            { "set": "@barrel", "color": "#ffffff", "sec": 0.04 },
            { "comet": "@barrel", "color": "#ff7a00", "lapSec": 0.2, "tail": 5, "for": 0.2 },
            { "wait": 0.07 }
          ], "loop": 3 }
      ]
    }
  },

  "states": {
    "initial": "Ready",

    "Ready": {
      "enter": [ { "start": "idle" } ],
      "exit":  [ { "stop": "idle" } ],
      "on": {
        "trigger.tapped": "Firing",    // a quick press -> one round
        "trigger.held":   "Bursting"   // hold it past 400 ms -> three
      }
    },

    "Firing":   { "enter": [ { "run": "shot"  } ], "on": { "shot.done":  "Ready" } },
    "Bursting": { "enter": [ { "run": "burst" } ], "on": { "burst.done": "Ready" } }
  }
}

The file is a fair mirror of the cards: "flow": "detached" is the dropdown, "loop": 3 is the checkbox and its count, and "for": 0.2 is the stop after row. serial never appears, because it is the default — the editor writes the smallest file that means what you clicked.

---
